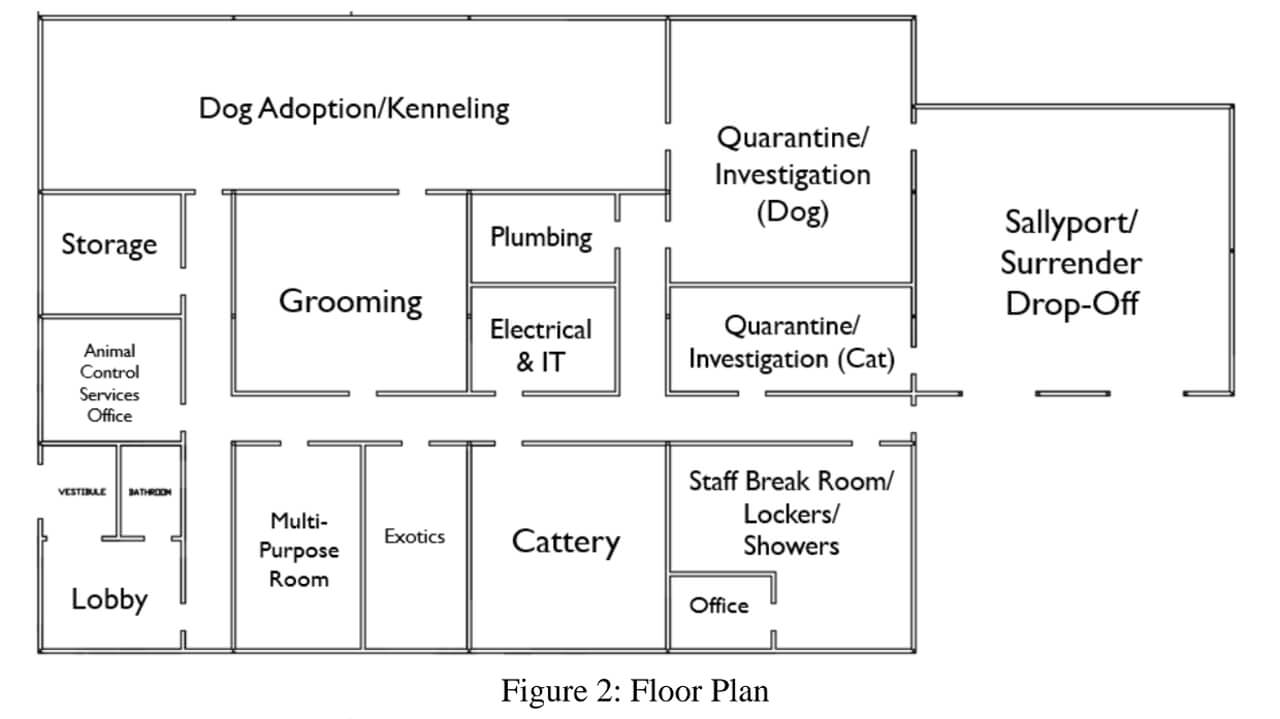

Figure 2: Floor Plan
Civil Engineering
Town of Hamden Animal Shelter Structural Design
Civil Engineering
Town of Hamden Animal Shelter Structural Design
The Town of Hamden, Connecticut, has proposed the concept of an Animal Shelter to address a growing need within the community. Students from Quinnipiac University have been tasked with the site design, architectural layout and preliminary structural design of the shelter.
Overview
After being tasked with the site design, architectural layout and preliminary structural design of an animal shelter for the Town of Hamden, a team of Quinnipiac civil engineering students developed architectural and structural designs using modeling software, all while complying with regulations and industry standards.
Student Team
Jenna Castro '25
Civil Engineering
School of Computing & Engineering
Aidan Ceravolo '25
Civil Engineering
School of Computing & Engineering
Natalie Lyon '25
Civil Engineering
School of Computing & Engineering
Abigail Palmgren '25
Civil Engineering
School of Computing & Engineering
Lauren Roeger '25
Civil Engineering
School of Computing & Engineering
Town of Hamden Animal Shelter Structural Design
Introduction
Hamden currently lacks a dedicated animal shelter, leading to over-occupancy at the North Haven Animal Shelter. The design project addresses this need by designing the structural framework for Hamden’s first-ever shelter at 466 Putnam Ave. Our team has developed a detailed floor plan that prioritizes adhering to safety and accessibility standards. The structural design includes a well-planned column layout, load-bearing elements, and material selections to ensure stability, longevity, and cost-effectiveness.
Requirements
The design complies with Connecticut Building Codes, Animal Control Regulations, ADA standards, DLI Inc. Programming Needs Assessment, AISC Steel Design Manual, ASCE 7-22, and AISC 360 for structural integrity, column layout, and load-bearing components. Sustainability is prioritized for a longlasting facility for animals and staff. Specifically, the shelter requires 6,500 ft², 20 dogs, 6-10 cats, and room for exotics. The site layout was configured with the fire station, and with typical set-back distances, parking, and accessibility.
Design
The architectural design was modeled with AutoCAD. Multiple iterations were analyzed, and columns were placed within walls, adhering to a grid scheme whenever possible. The structural design was performed with advanced modeling software for accuracy and efficiency. RISA 3D was used to model the columns, beams, and girders, along with applying the relevant load cases. Unity checks and suggested design were used for shape selection. Revit was used to create a detailed 3D model for better visualization and coordination of structural elements.
Figure 1: Section Sets
| Label | Shape |
| Exterior Column | W5x19 |
| Interior Column | HSS 4x4x4 |
| Girder | W12x53 |
| Floor Beam | W8x24 |
Plans and Models

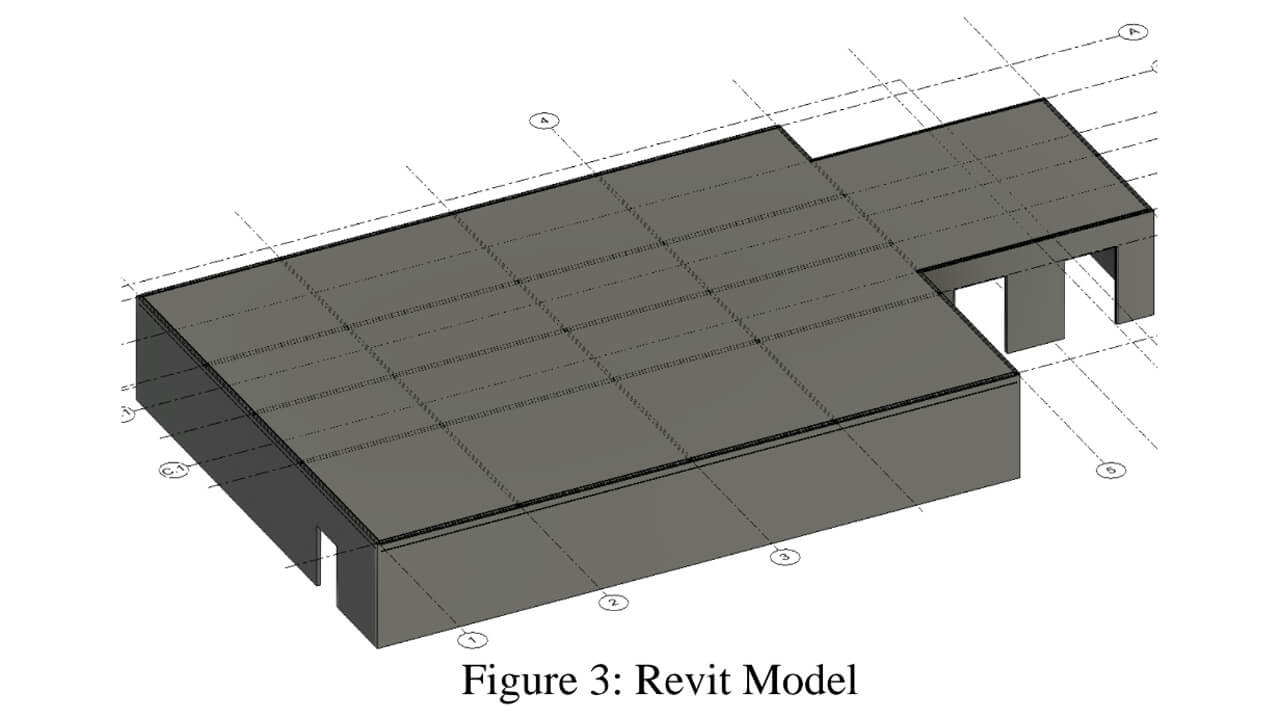

Figure 3: Revit Model

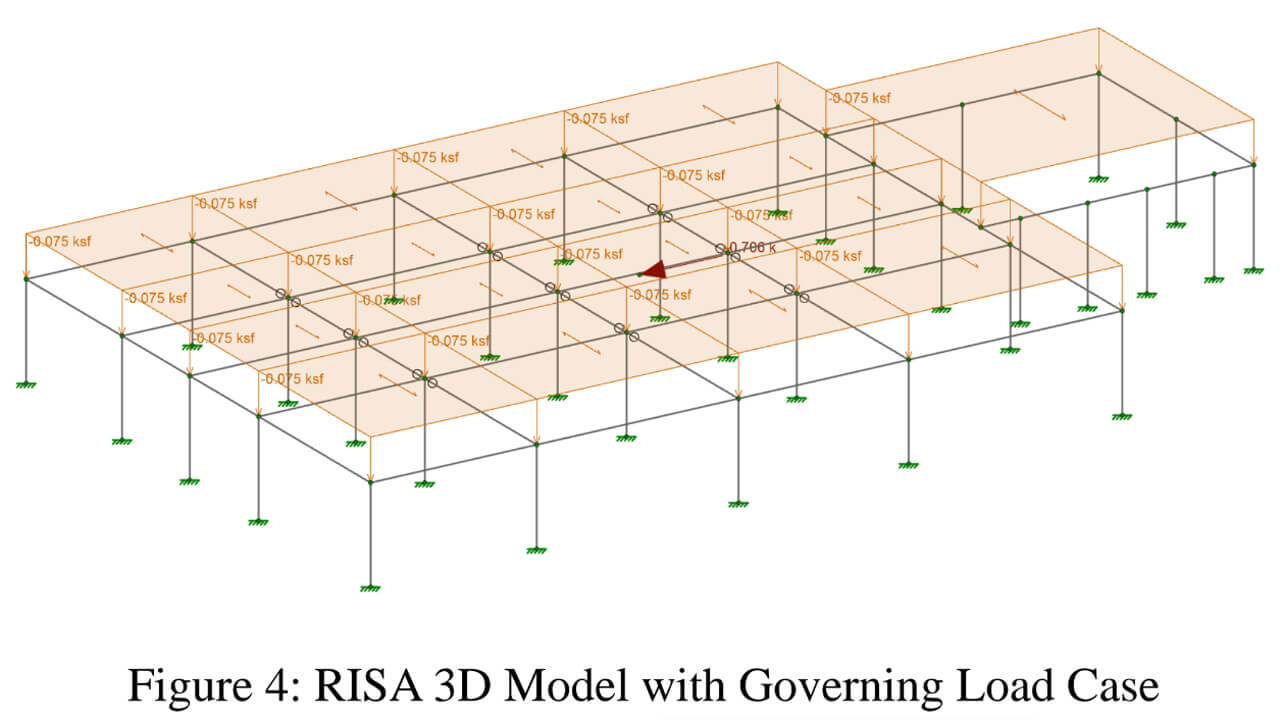

Figure 4: RISA 3D Model with Governing Load Case

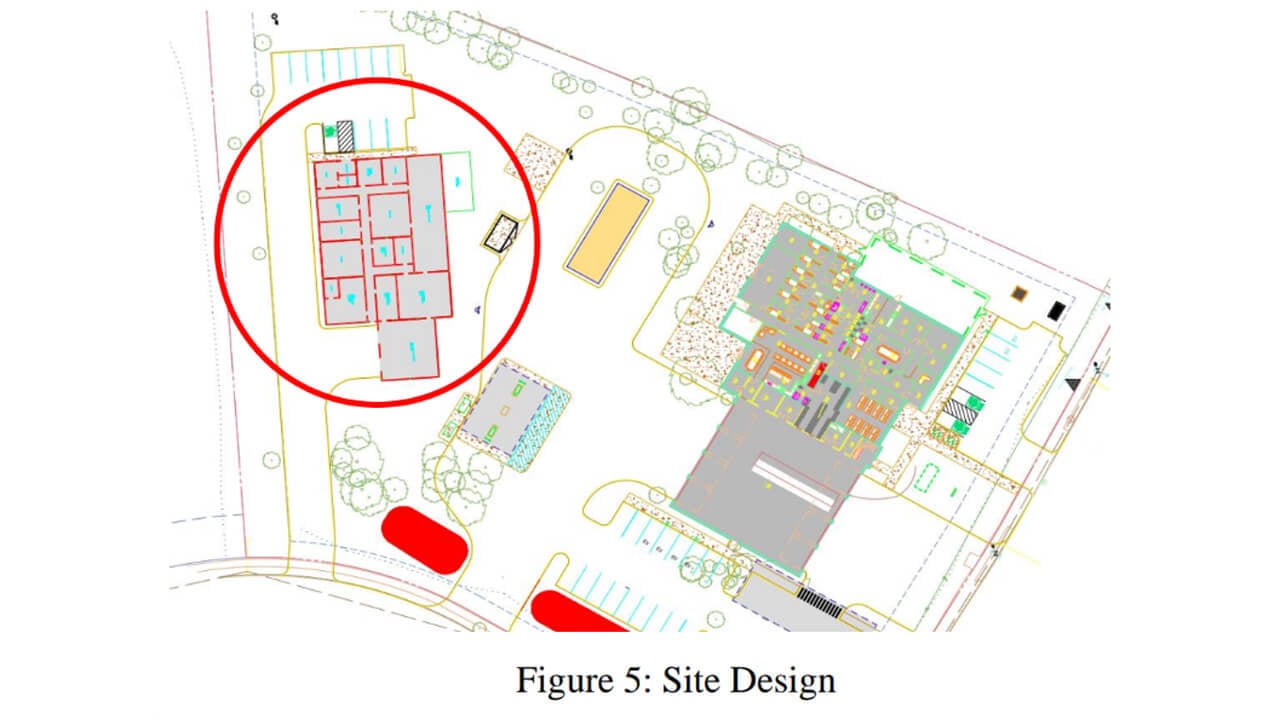

Figure 5: Site Design
Impacts
Hamden’s new animal shelter will alleviate overcrowding at the North Haven Animal Shelter by providing more space for animals and improving overall care. This project addresses current needs and provides a sustainable solution for the community and its animals. The structural design will allow the town to pitch the concept to the state for funding purposes. The team focused on visual representation of the design so that outside audiences can gather what the shelter will be composed of.
Professional Application
"Personally, I am going into a structural design position, so this project helped me to understand the aspects that must be included for a project of this magnitude. There are many steps and iterations of a project before it can reach the final stages, and that is something we are still learning as students. I am excited to learn more about the design process, and this project brought to light how much more we have to learn!" - Natalie Lyon '25
For Further Discussion
This serves as an overview of the project and does not include the complete work. To further discuss this project, please email Priscilla Fonseca.
